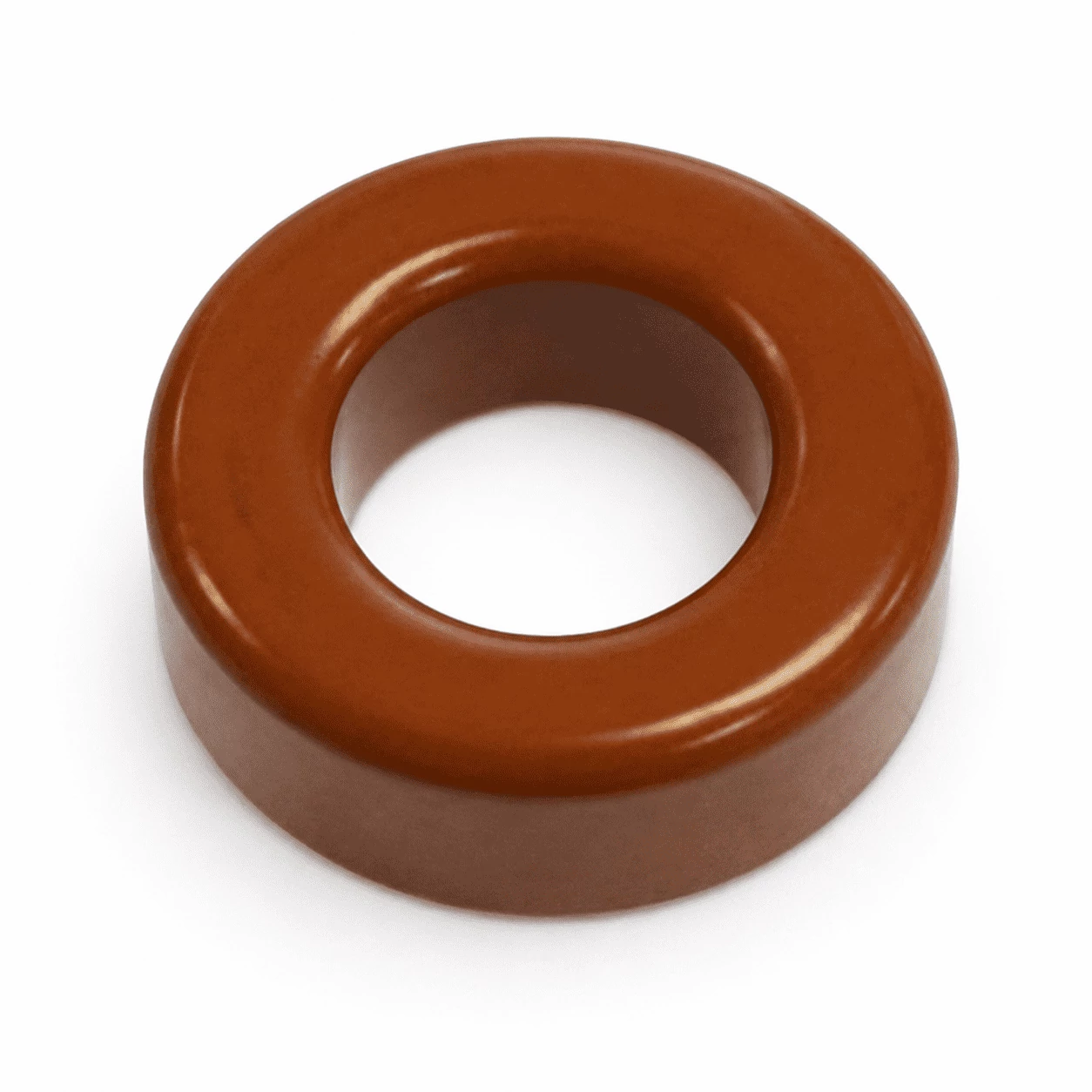

Amidon T106-0 vasmag
Leírás és Paraméterek
Physical Dimensions OD = 1.06 in / 26.9 mm +/- 0.02 in ID = .570 in / 14.5 mm +/- 0.02 in Ht = .437 in / 11.1 mm +/- 0.025 in |
| AL=1.9 +/- 5 % uH=(AL*Turns2)/1000 |
| Temperature Stability (ppm /°C) = 0 |
| Color Code = Tan / Tan |
| Optimum Resonant Circuit Range for highest Q and lowest core loss 50 MHz - 350 MHz |
Vélemények
1 értékelés
Írd meg te is a véleményed!
JP van Rossum
|
Igazolt vásárlás
2021. 01. 12.
Quickly sent, well packed, transport was somewhat expensive
