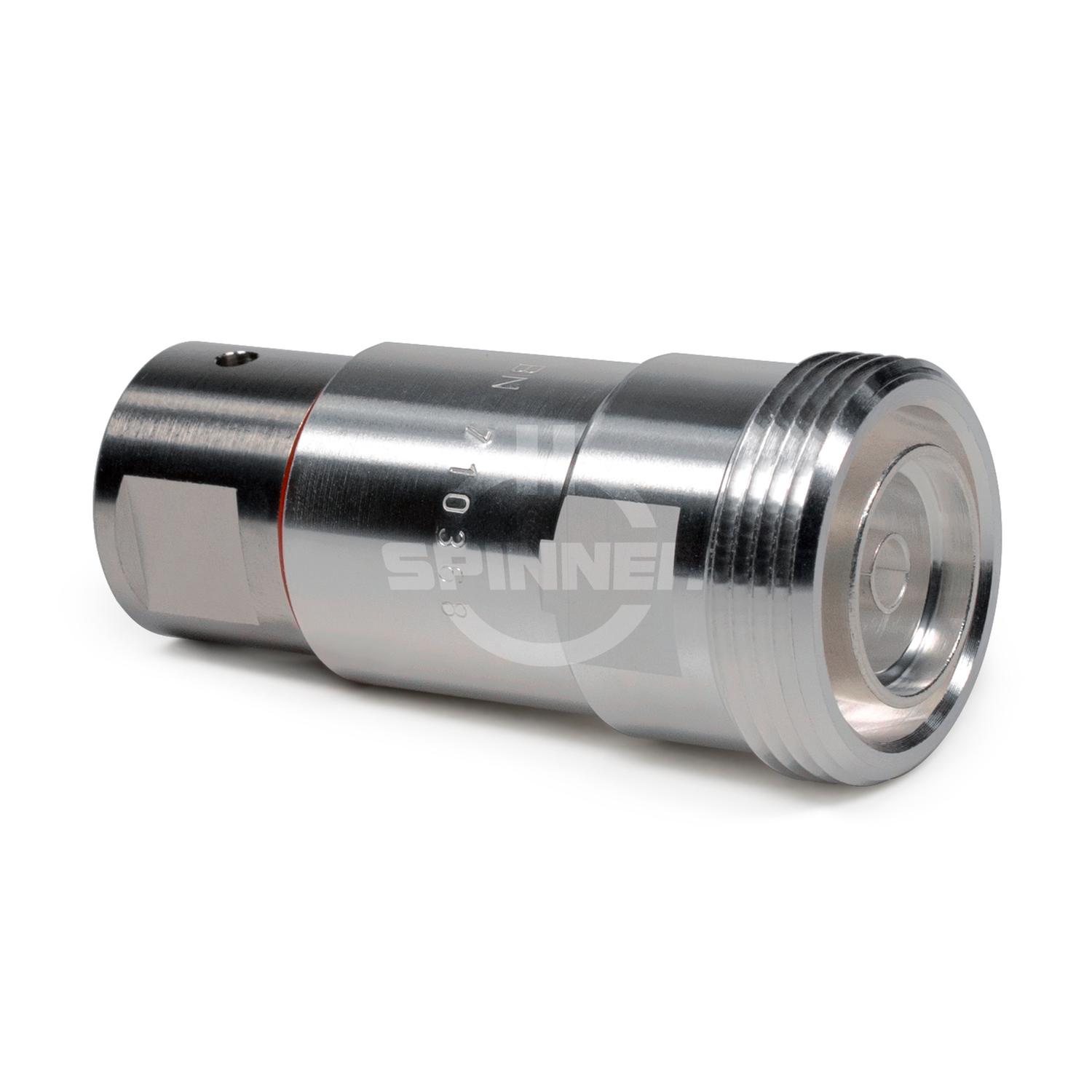

Spinner 7-16 FEMALE csatlakozó LF 1/2"-50 CAF Plast2000

SPINNER 7-16 female csatlakozó LF 1/2"-50 CAF Plast2000. Heliax, Andrew, TimesMicrowave, Belden, Draka, CommScope, EUPEN stb. kábelekhez.


RF characteristics

Number of interfaces: 1
Interface type: 7-16 female (50 Ω) per IEC 61169-4
Interface direction: straight
Mounting type: none
Frequency range: DC to 6 GHz
VSWR, max.:
     1.02 @ DC to 1.0 GHz
     1.03 @ 1.0 to 2.7 GHz
     1.06 @ 2.7 to 3.8 GHz
     1.10 @ 3.8 to 6.0 GHz


Mechanical characteristics

Cable entry type:  CAF®
Cable compatibility:  LF 1/2
Cable manufacturer types:  RFS: LCF 12-50
Inner conductor:  copper-alloy / silver-plated
Outer conductor material / surface:  copper-alloy / silver-plated
Other metal parts material / surface:  copper-alloy / nickel-plated
Insulation:  PTFE, PE
Housing sealing:  silicone rubber, PLAST® 2000
IP protection level:  IP 68
IP protection level remark:  connected with appropriate gasket
Weight, approx.:  120.0 g
